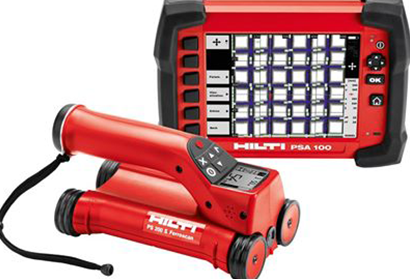

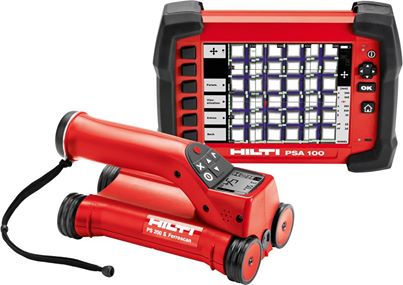

Hilti Ferroscan PS200
Hammond Concrete - Non Destructive Test Equipment

PS 200 Ferroscan Hire

Portable, non-destructive steel reinforcement detection system

Click here to hire this product

Uses
  • Verification of reinforcement: locate rebar when plans are missing, for acceptance inspections, before structural repair or change of loads on a structure.
  • Verification of concrete cover over reinforcement: obtain concrete cover information over large areas for acceptance inspections, before renovation or for quality control.
  • Avoid hitting rebars: avoid cutting through critical reinforcement or costly rebar hits.
Benefits
  • Immediate high resolution image for a clear picture of the reinforcement
  • Determine bar depth and estimate diameter
  • Determine average concrete cover over large areas easily
  • Reduce wear on drill/core bits and tool motors when drilling through reinforcement
  • Reduce drilling times – important in repetitive drilling applications
  • Avoid potentially disastrous and costly hits on critical reinforcement
  • Cableless connection between monitor and scanner. No cable to snag or hinder your movement
Spec
  • Scanner memory capacity Up to 9 Imagescans plus up to 30 meters of recorded Quickscans
  • Monitor memory capacity / type At least 150 Imagescans or 75 Quickscans plus up to 15 min. of voice recording (32 MB
  • Battery life 8 hours on average
  • Protection class IP 54 in accordance with IEC 529
  • Operating temperature range –10°C to +50°C
  • Dimensions / weight of scanner 26031323132 mm /1.4 kg
  • Dimensions / weight of monitor 2643152357 mm /1.4 kg

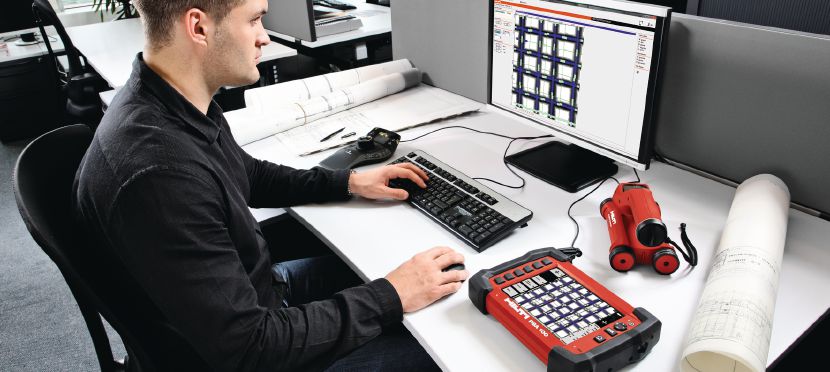

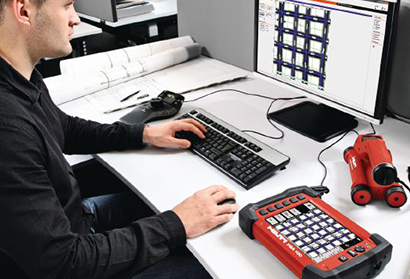

  • Minimum system requirements Microsoft Windows 2000, XP, at least 50 MB free hard disk space, CD-ROM drive, for PC software USB V1.1 interface
Determining cover to steel
Task
  • Building acceptance inspections
  • Checking coverage over a large area during renovation
  • Quality control
Scan solution:
  • Quickscan
  • Imagescan in difficult situations
Analysis:
  • Concrete coverage
Objects:
  • Bridges, tunnels, underground garages, etc.
Avoiding Reinforcement
Task
  • Hammer drilling or coring without the costly problem of hitting rebar
  • No cutting through statically relevant reinforcing bars
  • Increase the working life of the tool and drill/core bit
Scan solution:
  • Quickscan
  • Imagescan for through-drilled holes
Analysis:
  • Position of the reinforcing bars
Objects:
  • Repetitive fastening applications, ventilation ducts, through holes, etc
